Replacement GReddy (TD / TZ) Turbo Gaskets
GReddy metal turbine flange gaskets for high pressure. 12 types for the various shapes of GReddy / Mitsubishi Turbine Housings.
(it is always recommend to replace the gasket, if the gasket is removed.)
GReddy Turbo Gasket Reference Guide
| TDO25 | Actuator | Inlet #1 | 11900100 | |
| TD025 | Actuator | Outlet #2 | 11900101 | |
| TD025M | Actuator | Outlet #2 | 11900101 | |

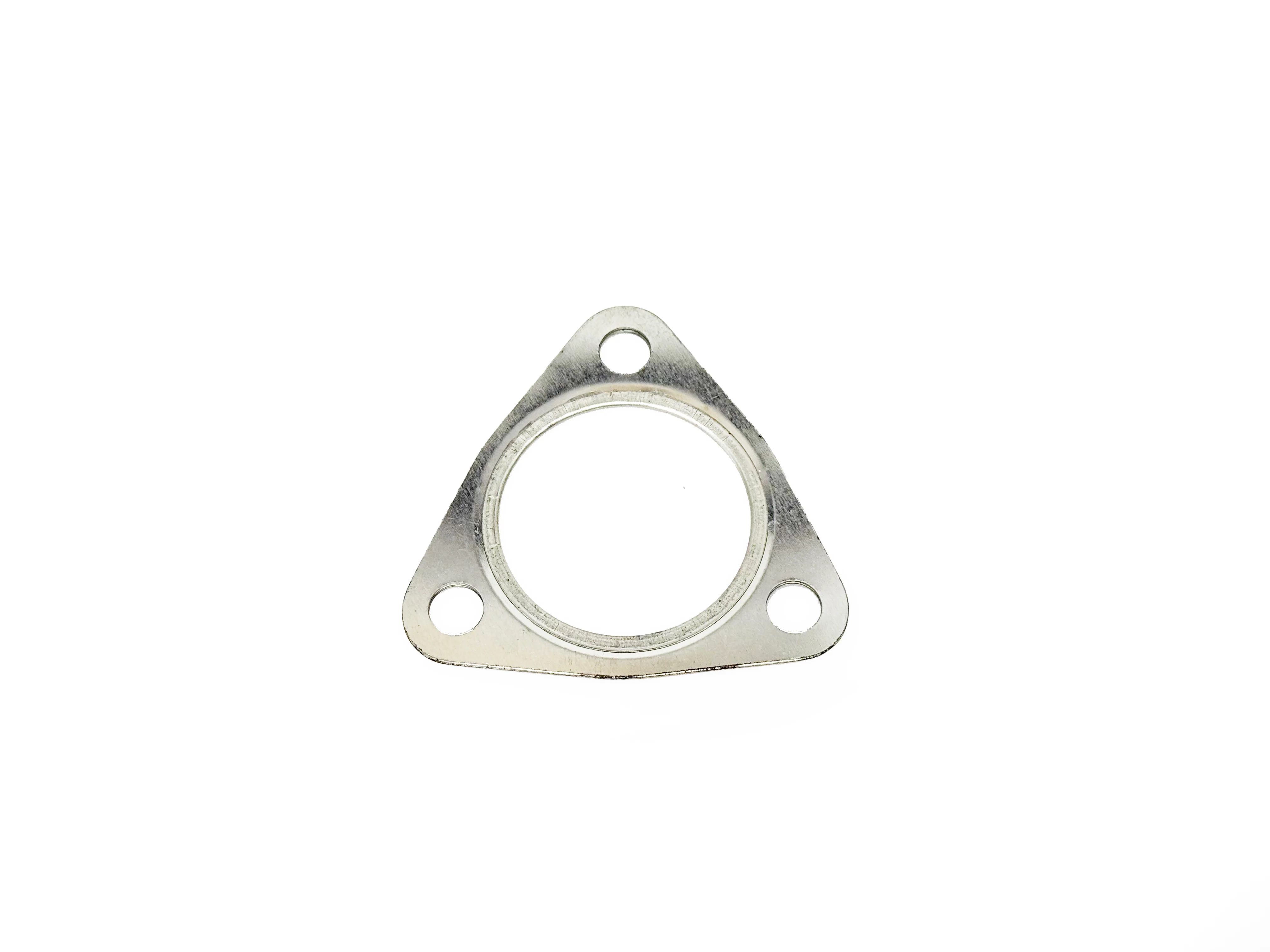

| TDO4 | External | Outlet #3 | 11900120 | |
| TD04H | Actuator | Inlet #4 | 11900123 | (TD04H, T517Z, T518Z*, T618Z**, T620Z Turbochargers) |
| TD04H | Actuator | Outlet #5 | 11900121 | |
| T517Z T518Z | Actuator | Outlet #H | 11900160 11900133 |
(Honda T517Z, T518Z TK, excludes WRX) |
| T517Z T518Z | Actuator | Outlet | 11900161 | (R32 R33 R34 TK) |
| TDO5(H) | Actuator | Inlet #6 | 11900131 | |
| TDO5(H) | Actuator | Outlet #7 | 11900132 | |
| TDO5(H) | External W/G | Inlet #9 | 11900130 | |
| TDO5(H) | External W/G | Outlet #9 | 11900130 | |
| T618Z | Actuator | Outlet #M | 11900136 | (RX8 TK) |
| TDO6(H) | Actuator | Inlet #6 | 11900131 | |
| TDO6(H) | Actuator | Outlet #8 | 11900141 | |
| TDO6(H)/T67 | External W/G | Inlet #9 | 11900130 | |
| TDO6(H)/T67 | External W/G | Outlet #10 | 11900140 | |
| TD06SH (8.10.12cm2) | External W/G | Inlet #6 | 11900131 | |
| TD06SH (8.10.12cm2) | External W/G | Outlet #6 | 11900141 | |
| TD07S/T78/T88 | External W/G | Inlet #11 | 11900150 | (also T88H) |

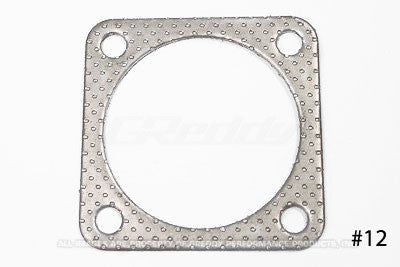

| TD07S/T78/T88 | External W/G | Outlet #12 | 11900151 | * (for square flange type, not 94mm V-band) |

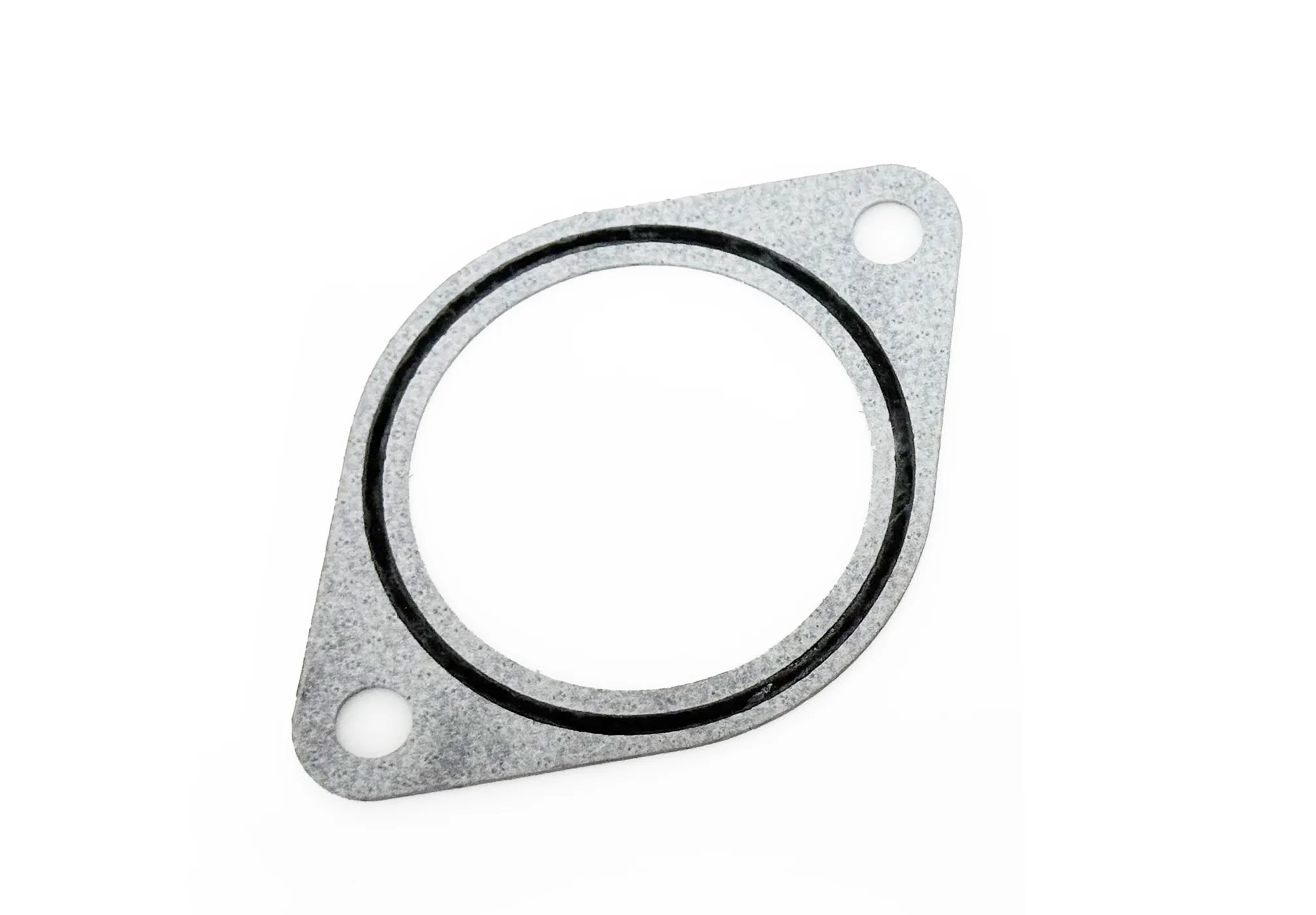

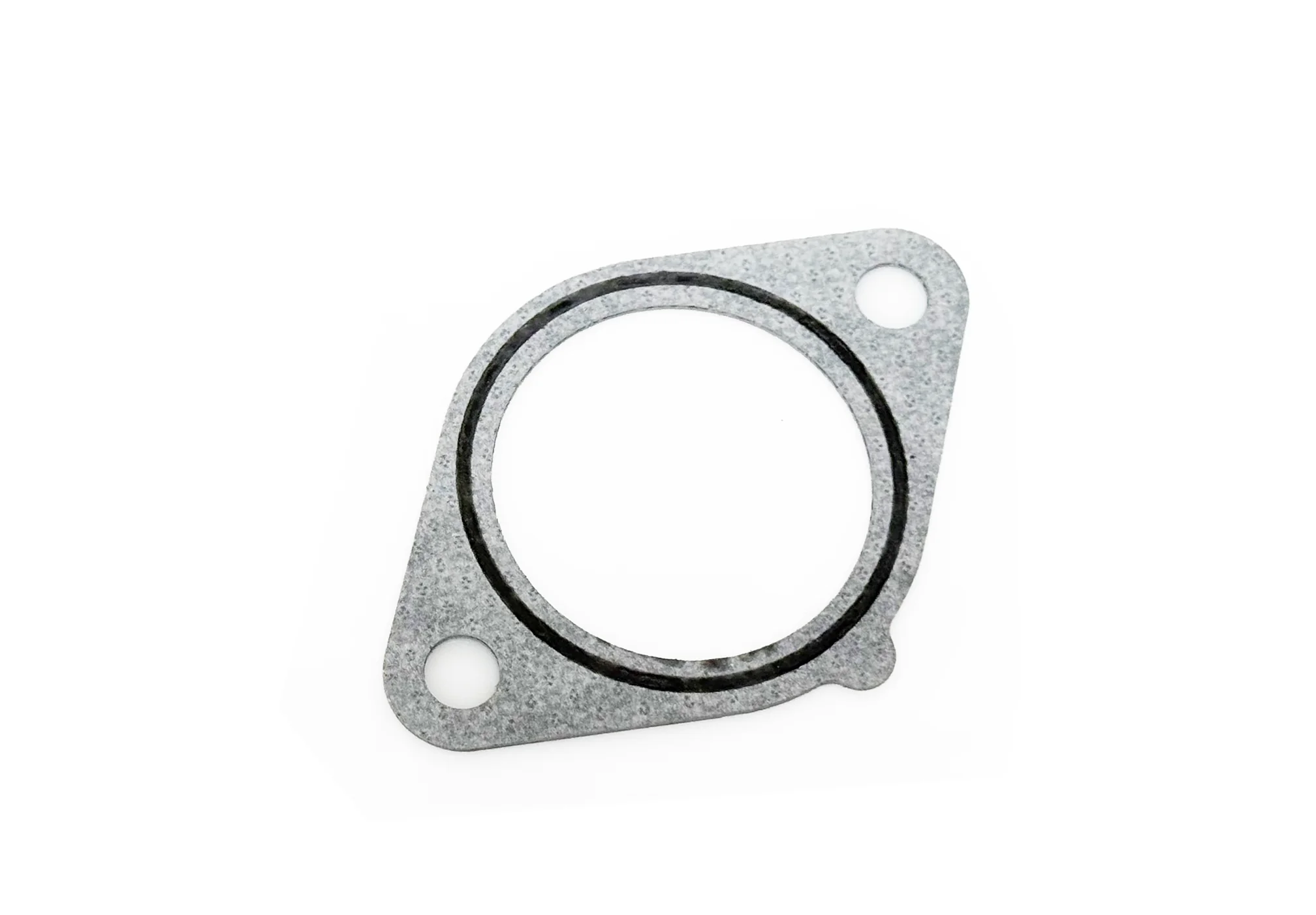

| T517Z/T518Z/T620Z | (std.style)* Actuator | Comp. Inlet | 11900190 | (composite material) |
| T517Z/T518Z/T620Z | (std.style)* Actuator | Comp. Outlet | 11900191 | (composite material) |
11900151*** (Composite with metal O-ring)
T518Z* (11900123 excludes WRX T518Z application)
T618Z** (RX8 T618Z outlet applications uses 11900136)
